Making of a “Garden”

In this topic I am going to describe how the modern garden is made when there exist a building compartiment underneath. For the plane garden there must be no problem for the level of soil. But in this project we have a discontinous surface as in picture below.

20131218_113706

I’l talk later ways to overcome this uncontinuous surface. In order to make the garden firt we applied the DELTERAXX just above the concrete surface already treated for impermeability, this material permits infiltration of water from on side (top) and is impermeable the other side (bottom). The water can go down and flow to the exit point.

20140205_105338
20140313_100852

20140205_105401

Then extruded polystyrene (polystyrène extrudé ) is put on to gain the height of the soil which is quite expensive for quality soil as in the photos:

20140219_092021

It is then covered by thin layer partly permeable to leave only the water to infiltrate and to resist the solid materials this is geotextile materials.

20140205_105536

Knowing the exact position of plant the two bed of iron bars are kept just below the plant in order to fix the plant with the ground.

image (1)

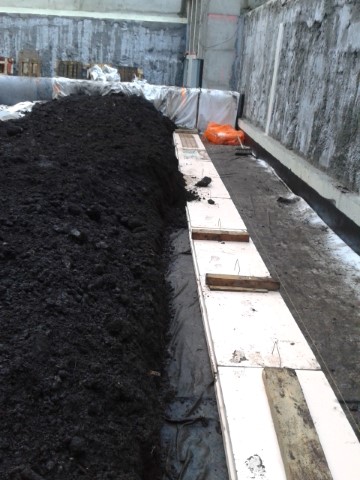

When all these prepartion are made, the soil is put from above to an predefined height.
20140213_165452

20140313_14055820140313_140645

In order to hold the trees properly welded two layers of iron bars (square) of dimension 2mX2m are posed where there are plants. Then the plants are planted.
20140228_105149

tree
tree1

20140228_104157
20140306_144700

jardin 1

jardin
jardin2
